1.5" In-Line Sight Glass with Clamp End - Sanitary Flow Sight Glass - Stainless Steel 1.5 Inch Tri Clamp Type - Flow Pipe OD 38mm

Product Description In-Line sight glass flow indicators can provide a full range of observation angles about fluid flowing in any direction. Can be used in vertical or horizontal position. It is convenient to observe in the pipe the flow and reaction of liquid, gas, steam, etc. Product Parameter Material: Embedded speculum with clamping end, SUS316 body material Max. Working Temperature: 120℃ Max Temperature: 300 Fahrenheit Max Pressure: 120 PSI ID/OD Polished: 32Ra Glass: Tempered Glass End connections: butt-welded, sanitary clamp, or others upon request Surface treatment: CNC machining Package List: 1 x Sanitary Sight Glass Data Sheet Pipe OD/ Ferrule OD/ Fits Tri-clamp/ Length 19mm/ 50.5mm/ 1.5"/ 155mm 25mm/ 50.5mm/ 1.5"/ 156mm 32mm/ 50.5mm/ 1.5"/ 147mm 38mm/ 50.5mm/ 1.5"/ 157mm 45mm/ 64mm/ 2"/ 159mm 51mm/ 64mm/ 2"/ 163mm 64mm/ 77mm/ 2.5"/ 175mm 76mm/ 91mm/ 3"/ 185mm 102mm/ 119mm/ 4"/ 185mm

• SIZE - In-line sight glass Flow Pipe OD: 38mm. Ferrule OD: 50.5mm, Fits to 2" tri clamp.
• WORKING PRESSURE - Max Pressure:120 PSI, Max Temperature: 300 Fahrenheit.
• BODY MATERIAL - In-line Sight Glass with Clamp End, SUS316 body material.
• CONVENIENCE TO USE - Sight glass flow indicators provides a full 360 degree to observe fluid flow in any direction.Sanitary sight glasses are designed for sanitary applications used in the food, dairy, and pharmaceutical industries.

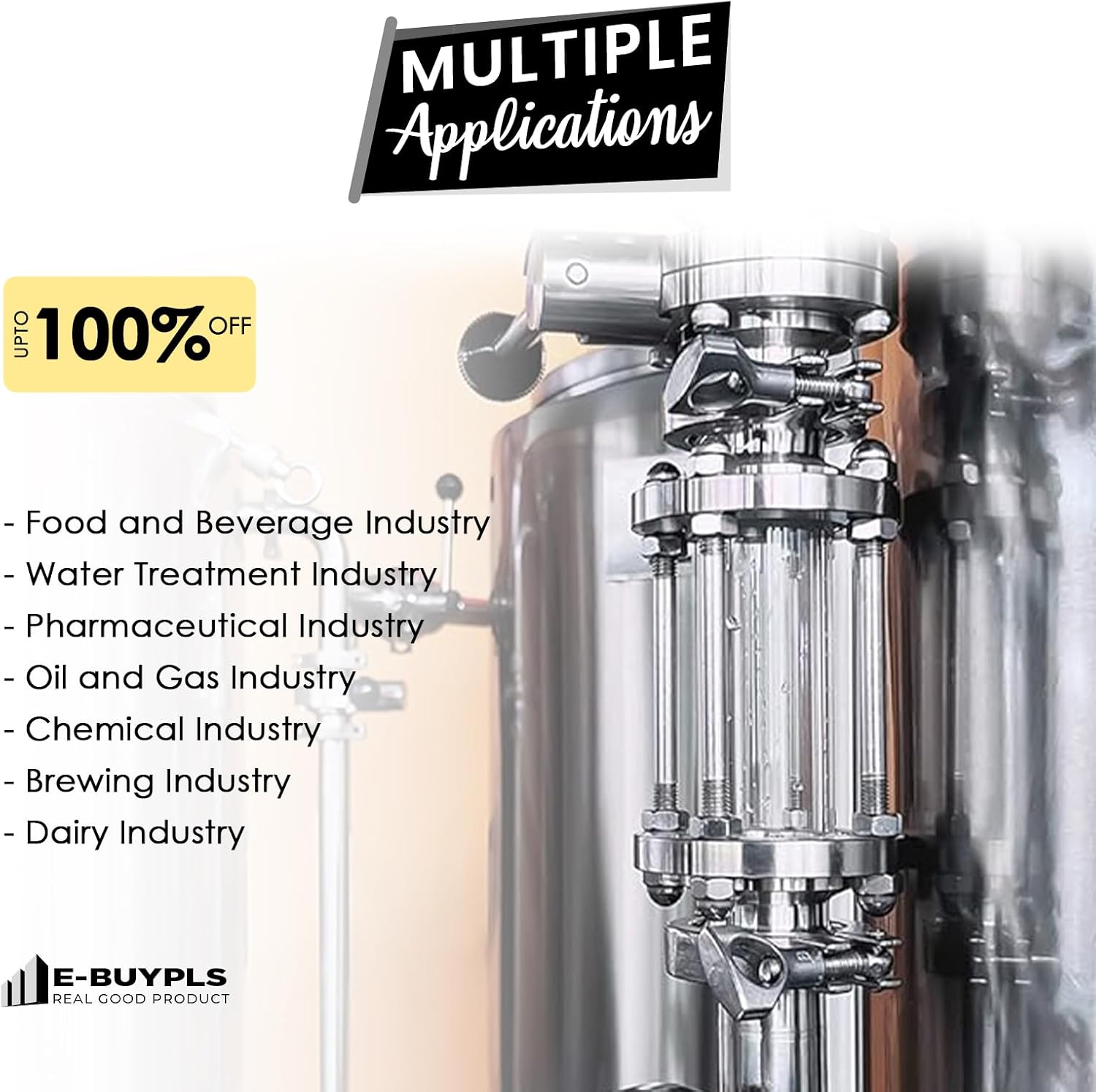

• WIDE APPLICATION - The Sanitary Sight Glasses are designed for sanitary applications used in the food, dairy, and pharmaceutical industries.
